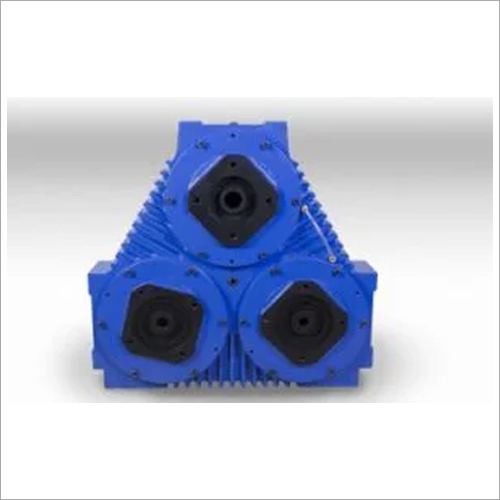

PTO Drive Gearbox

Get a Price/Quote

MOQ : 1 Piece

PTO Drive Gearbox Specification

Gear Type
PTO Drive Gear

Material
Cast Iron / Alloy Steel

Processing Type
Precision Machined

Gear Tooth Profile
Spur / Helical

Gearing Arrangement
Planetary / Parallel Shaft

Direction
Bidirectional

Output Torque
Up to 1800 Nm

Rated Power
Up to 50 HP

Input Speed
540 rpm / 1000 rpm

Output Speed
As per application requirement

Efficiency
Up to 95%

Lubrication
Oil Bath / Grease

Temperature Range
-20C to +85C

Mounting Type
Flange Mounted

Shaft Material
Alloy Steel, Hardened and Ground

Sealing Type
Oil Seal / Gasket

Lifetime
20,000 operating hours (approx.)

Application
Tractors, Agricultural Implements, Industrial Machines

Noise Level
Low

Casing Color
Blue Powder Coated

PTO Drive Gearbox Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
Week

Main Domestic Market
All India

PTO Drive Gearbox About

A PTO is a device (a mechanism) usually seated on the flywheel housing, which transfers power from the driveline (engine) to a secondary application. In most cases, this power transfer applies to a secondary shaft that drives a hydraulic pump, generator, air compressor, pneumatic blower, or vacuum pump.

High Durability and Efficiency

Designed for rigorous industrial and agricultural applications, the PTO Drive Gearbox features precision machining, offering up to 20,000 operational hours and 95% efficiency. Its alloy steel, hardened shafts and cast iron casing ensure a rugged build that withstands tough conditions and delivers consistent performance with minimal maintenance.

Versatile Application and Performance

With flange mounting and bidirectional output, this gearbox is compatible with tractors, agricultural implements, and various industrial machines. It supports input speeds of 540 or 1000 rpm, adapting output speed as required for specific use cases. The planetary or parallel shaft arrangement further enhances its versatility, making it suitable for a range of operational setups.

FAQ's of PTO Drive Gearbox:

Q: How is the PTO Drive Gearbox installed?

A: The PTO Drive Gearbox uses a flange-mounted arrangement, allowing for secure and straightforward installation onto compatible equipment such as tractors, agricultural implements, or industrial machines.

Q: What are the main benefits of using a helical or spur gear tooth profile in this gearbox?

A: Helical and spur gear tooth profiles provide smooth, quiet operation with high transmission efficiency and reduced wear. Helical gears, in particular, help achieve lower noise levels and greater strength, which is ideal for continuous-duty applications.

Q: When should the lubrication (oil bath or grease) be checked or replaced?

A: It is recommended to regularly check the gearbox's lubrication level and condition as part of routine maintenance, typically at every major service interval or after every 500 operating hours, to ensure optimal performance and longevity.

Q: Where can this PTO Drive Gearbox be used?

A: This gearbox is suitable for installation in a variety of settings, including tractors, agricultural implements, and numerous industrial machines, thanks to its robust design and flexible compatibility.

Q: What is the process for maintaining the gearbox's low noise level over time?

A: To maintain low noise levels, ensure the gearbox is correctly installed, adequately lubricated with the specified oil or grease, and that seals or gaskets remain intact to prevent contamination. Regular inspections and timely replacement of worn components will also help sustain quiet operation.

Q: How does the gearbox's material and construction benefit its lifespan and reliability?

A: The use of cast iron or alloy steel for the casing, along with hardened and ground alloy steel shafts, ensures excellent strength, exceptional wear resistance, and ability to operate in challenging environments, thereby extending operational life up to 20,000 hours.
